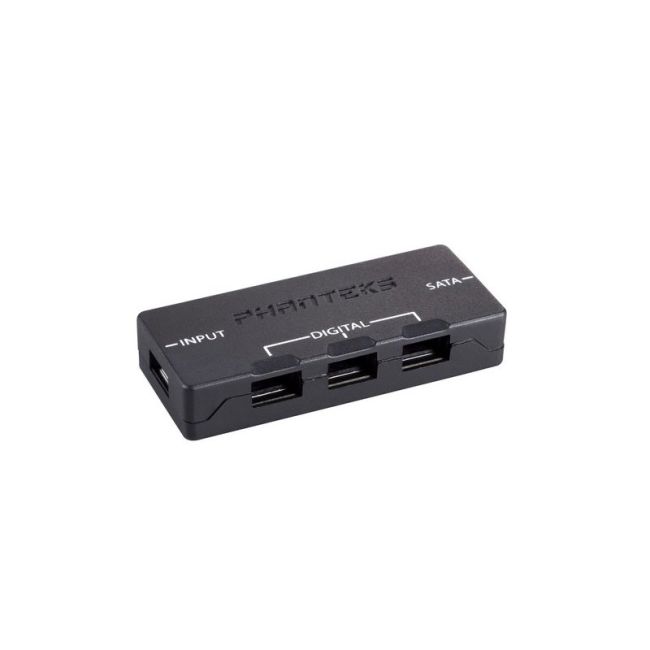

Phanteks Control Hub For Digital RGB LED

OVERVIEW

MANUAL CONTROL
Customize your lighting with Phantek’s D-RGB controller Preprogrammed with the best selection of color modes and patterns Easy control with a simple 3-button remote Works right away, without the installation of additional third party software.

MOTHERBOARD CONTROL (through software)
Sync your Digital RGB controller to your (addressable) motherboard with the included D-RGB Motherboard adapter. Expand the motherboard supported power output from 3 to 9 Phanteks Digital RGB products.

Specifications:

Mounting: Magnets
Connector:  Input: 3 pin female, M/B Adapter: Digital RGB adapter 3pin
Input Voltage: +5V
Current: Output Current: 7A (35W)
Single Channel MAX power: 4A (20W)
Compatibility: Phanteks 3 pin connector / M/B 3 pin DRGB Header (+5V,DATA,N/A,GND)
LED Spec: Digital RGB
LED count: 30 LED / 400mm


Scope of Delivery
1x Digital RGB Control Hub
1x Digital RGB 3-Button Remote
1x Controller Cable (1000mm)
1x SATA Power Cable (200mm)
3x Digital RGB Output Cable (70mm)
1x Digital RGB M/B adapter (600mm)
1x 3M Velcro Sticker (for Remote)
